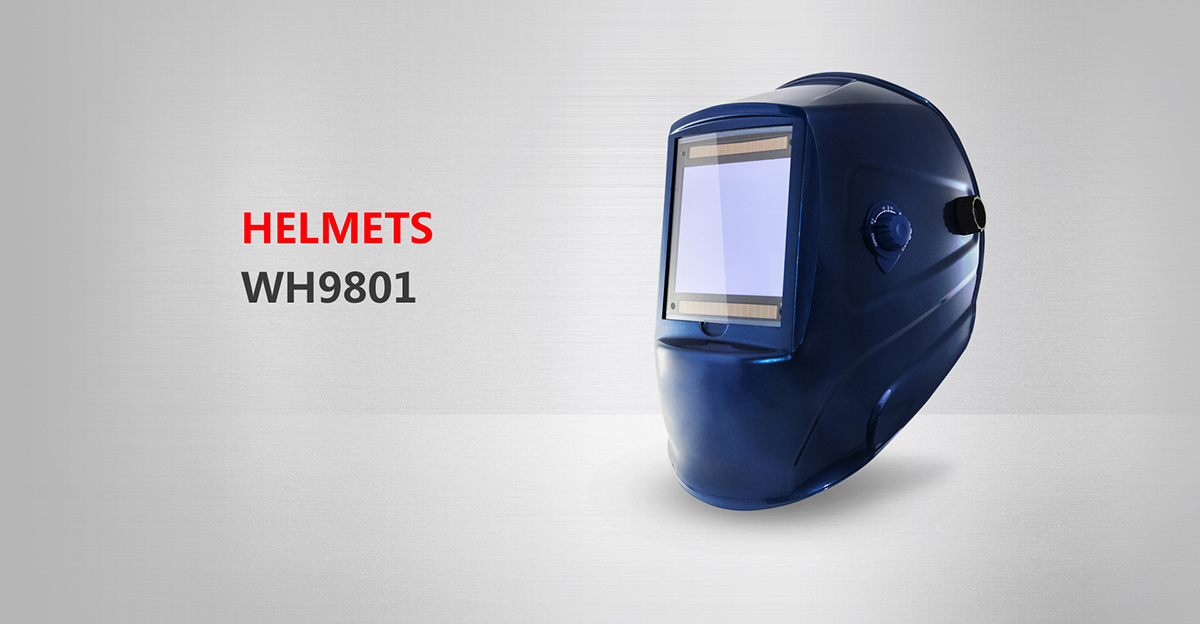

WH9801
WH9801
Product Features
-Viewing area：100X93MM
-Optical class：1/1/1/2
-Shade adjustment：DIN5-9/9-13
-Sensors：4
-Grinding：outside
-TIG capability：＞2A
-Optical class：1/1/1/2
-Shade adjustment：DIN5-9/9-13
-Sensors：4
-Grinding：outside
-TIG capability：＞2A
Product Description
TECHNICAL DESCRIPTION
| Filter model： | WH801 |
| Light state： | DIN4 |
| Dark state： | DlN5-9/9-13 |
| Switching time： | <0.04mS |
| Optical class： | 1/1/1/2 |
| Cartridge Size： | 133x 114 x 9mm (5.25x4.5x0.35" ) |
| Viewing area： | 100 x 93 mm (3.94x2.64" ) |
| Sensitivity： | lnside&Stepless |
| Delay time： | Inside&Stepless 0.15S ~0.80S |
| Shade Adjustment： | Outside & Stepless |
| Sensors： | 4 |
| TIG Capability： | >2A |
| Grinding： | Outside |
| Power Supply： | Replaceable Li-Mn & Solar Combination |
| UV & IR protection： | Up to shade 16 |
| Weight： | 530G (1.17 Pound) |
| Material of helmet： | NYLON EN175B |
| Operation temperature： | -5℃( 23° F)-+55℃( 131 °F) |
| Warranty (years)： | 2 |
| Available color： | blue/black/silver/red/other pattern |
| Certification： | CE, ANSI |
