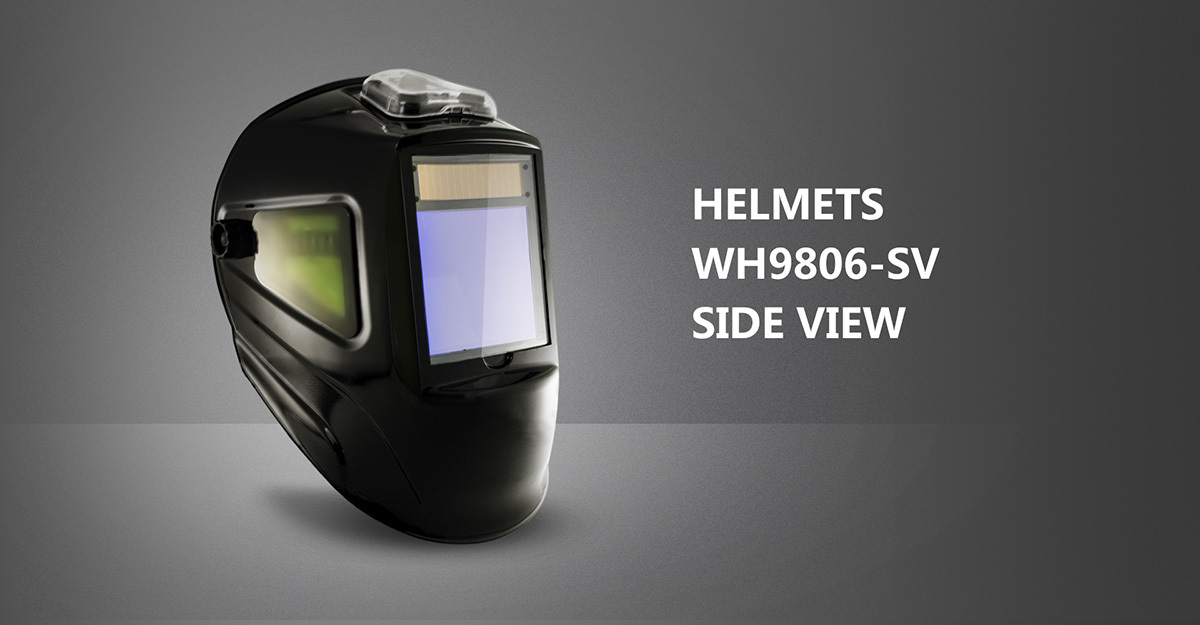

WH9806-SV
WH9806-SV
Product Features
-Viewing area：100X93MM
Optical class：1/1/1/2
-Switching time：0.04ms
-Dark state：DIN5-9/9-13
-sensitivity &delay time：Stepless
-Sensors：4
-Material of helmet：EN 175B
-Suitable for all types of welding
Optical class：1/1/1/2
-Switching time：0.04ms
-Dark state：DIN5-9/9-13
-sensitivity &delay time：Stepless
-Sensors：4
-Material of helmet：EN 175B
-Suitable for all types of welding
Product Description
TECHNICAL DESCRIPTION
| Model： | WH806-SV |
| Light state： |
Main Window DIN4 ; Side Window DIN5 |
| Dark state： | Main Window DIN5-9/9-13 ; Side Window DIN5 |
| Switching time： | <0.04ms |
| Optical rating： | 1/1/1/2 |
| Viewing area： | 100x93 mm main window 50/85x100 mm side window |
| Lens Shade (DIN)： | 5-9 / 9-13 main window 5 side window |
| Light Shade(DIN)： | 4 main window 5 side window |
| Sensors： | 4 |
| UV/lR Protection： | Up to DlN 16 |
| On / off： | Automatic |
| Shade control： | Outside & Stepless |
| Light Sensitivity Control： | Outside, Low-High; adjust by infinitely dial knob |
| Delay control/Delay time (dark to light)： | Outside, 0.15-0.80s by infinitely dial knob |
| TlG amps rated： | ≥2 amps |
| Grind mode： | Yes, outside |
| Weight： | 595 gr |
| Operating Temperature： | -5℃ (23°F)- +55℃ (131°F) |
| Storing TemperaturePower Supply： | -20℃ (-4°F)- +70℃ (158°F) |
| Power Supply Solar power & replaceable battery： | 2xCR2450 Lithium battery |
